Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: OEM
  • Model Number: LR1108
  • Output Power: 101 - 200W
  • Output Type: Single
  • Input Voltage: 220V
  • Output Voltage: 12V
  • Output Frequency: 250-350kHz
  • Output Current: 12A
  • Product Name: Mini Plug Type DC Power Board

Packaging & Delivery

Packaging Details: electrostatic bag
Delivery Detail: 3-5days

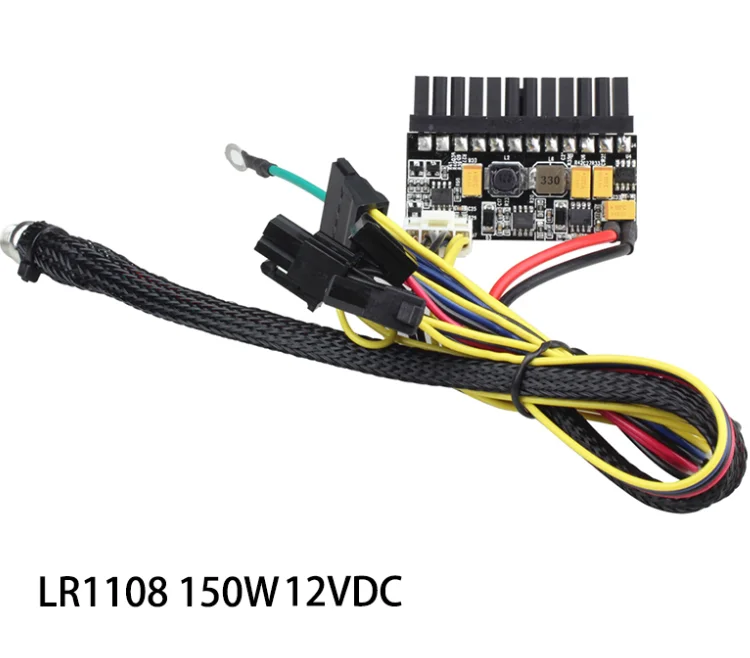

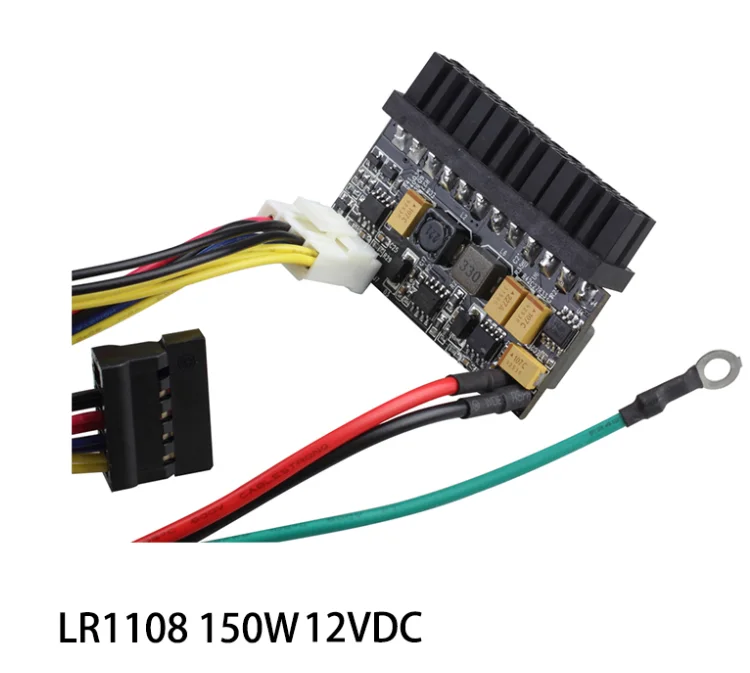

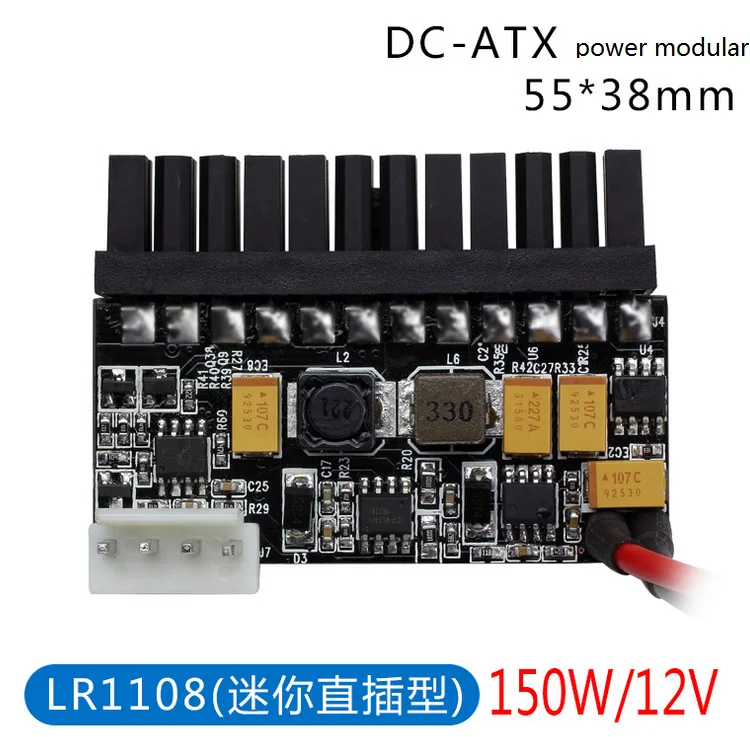

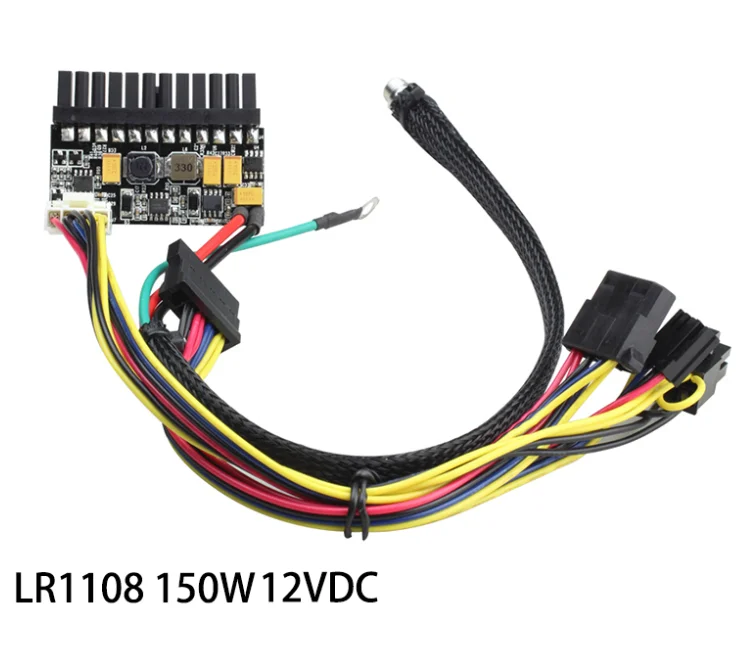

LR1108 150W 12V DC Mini Plug Type DC Power Board

INPUT REQUIRED:
INPUT VOLTAGE RANGE:11.4VDC—12.6VDC
INCOMING CURRENT RANGE:12.0A Max @11.2VDC
INPUT SURGING CURRENT:12.0Vmax@12VDC
WORK EFFICIENCY:≥85%


OUTPUT REQUIRED:
FIVE GROUPS OF POWER OUTPUT

Item
Output voltage
Output current(A)
min(V)
avg(V)
max(V)
ripplewave(mV)
Sb current
avg
peak
+3.30V
+3.14
+3.30
+3.47
50
0
6.0
6.0
+5.00VSB
+4.75
+5.00
+5.25
50
1.0
1.6
2.0
+5.00V
+4.75
+5.00
+5.25
50
0
5.0
6.0
+12.00V
+11.40
12.00
+12.6
120
0
4.0
8.0
-12.00V
-11.40
-12.00
-12.6
120
0
0.1
0.15

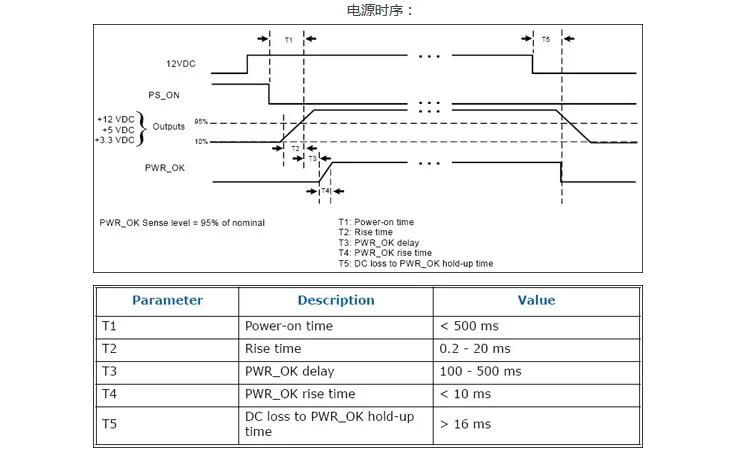

PSU timing sequence:

Environment description:

Working temperature/humidity       15°C to 35°C / 45%-75%

Reposition temperature//humidity   -40°C to +70°C/ 10%-90%

Atmospheric pressure            86Kpa—106Kpa





Other parameters:

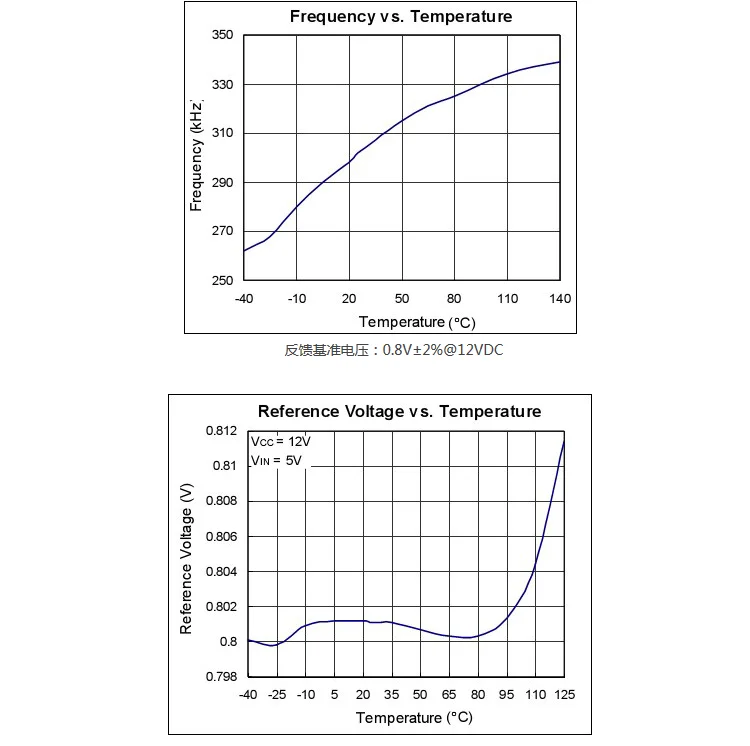

Working frequency:Icbuilt-in oscillator(250-350)kHz@Vcc=12V
